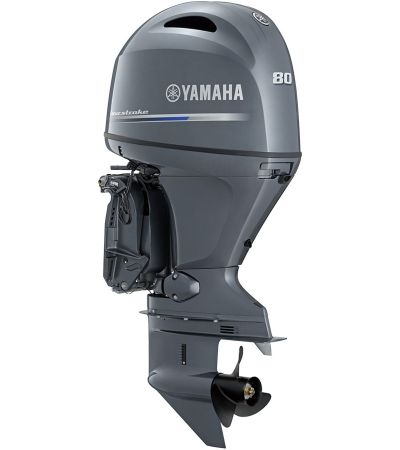

Yamaha F80DETL
You can buy a four-stroke outboard motor YAMAHA F80LB (F80DETL) in our store, our specialists will advise and select a compatible motor package for your boat. We have a wide range of original accessories and spare parts in stock or on order.
In our certified service center, mechanics will install the Yamaha F80LB outboard motor, all controls and any other additional equipment (fish finder, echo sounder, chartplotter, entertainment system (audio), anchor winch, additional lighting and much more), after which they will conduct tests in the service or on the water…
Warranty – 5 years.
PERFORMANCE
| Max. prop shaft output | 58.8 kW / 80 hp |
| Full throttle operating range | 5000~6000 r/min |
| Idling speed | 750 ± 50 r/min |
| Fuel consumption | 28.7 l/h @6000 r/min |
ENGINE
| Engine type | 4-Stroke, 16-Valve, SOHC, In-line 4 |
| Displacement | 1832 cm³ |
| Bore × Stroke | 81.0 × 88.9 mm |
| Compression ratio | 10.0 :1 |
| Starting enrichment | Fuel Injection |
| Fuel induction system | Electronic Fuel Injection (EFI) |
| Fuel tank | - |
| Lubrication system | Wet sump |
| Engine oil capacity | 3.2/3.0 ℓ (with / without oil filter replacement) |
| Ignition system | TCI |
| Ignition timing | BTDC 8.5 ~ BTDC 23.0 deg. |
| Spark Plug | LKR6E-9N |
| Engine Start | Electronic Starter |
| Alternator | 35 A (battery charge: 21 A) |
| Cooling system | Raw-water, thermostatically controlled |
| Exhaust system | Through propeller boss |
BRACKET / DRIVE
| Steering | Remote Control |
| Steering Angle (maximum) | 35° from center, either direction |
| Mounting Centers | — |
| Trim Control System | Power trim and tilt |
| Trim / Shallow water drive | Continuously variable |
| Degree of Trim | -4° through +16° |
| Degree of Tilt | 70° |
| Gear shift | F-N-R |
| Gear ratio | 2.15 (28/13) |
| Gear oil capaciti | 0.760 ℓ |
| Propeller rotation | Clockwise |
| Propeller hub | K |
| Engine transom height (Shaft length) | L: 516 mm (20.3 inch) |
| Boat transom height | L: 508 mm |
| Dry weight | 162.0 kg |
